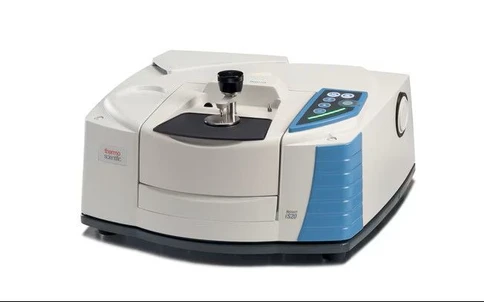

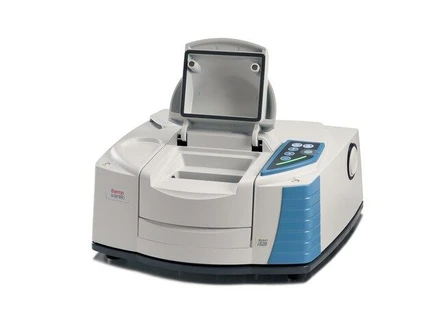

Thermo Scientific Nicolet iS20 FTIR Spectrometer

The Thermo Scientific Nicolet™ iS™ 20 FTIR Spectrometer represents a next-generation FTIR platform designed for fast and accurate identification of mixtures, contaminants, and trace components across applications including QA/QC, pharmaceuticals, polymers, and forensics.

At the core of the system is the LightDrive™ Optical Engine, integrating the source, laser, interferometer, and detector into a single optimized module. This design delivers high spectral resolution (<0.25 cm⁻¹) and a signal-to-noise ratio up to 50,000:1, enabling detection of low-level components.

The instrument features a touchscreen interface with multi-color LED status indicators (ready / scan / alert) for intuitive operation. A sealed and purge-ready optical bench ensures long-term stability even in demanding environments.

The system supports cloud-enabled workflows via Thermo Fisher Cloud and uses OMNIC™ / OMNIC Specta™ software, including a library of >9,000 spectra for rapid unknown identification.

Key Features

• LightDrive™ optical engine (source, laser, interferometer, detector)
• Spectral resolution < 0.25 cm⁻¹
• Signal-to-noise ratio up to 50,000:1
• Touchscreen interface with LED status indicators
• 10-year warranty on source, laser, and interferometer
• High data reproducibility (stable IR source)
• Sealed, purge-ready optics
• Cloud connectivity (Thermo Fisher Cloud)
• OMNIC™ and OMNIC Specta™ software (>9,000 spectra library)
• Automated validation (IQ/OQ, pharmacopeias)
• Wide accessory compatibility (SMART, microscopy, TGA-IR)

Technical Specifications

Optics and Performance

• Spectral range:
  • 7800–350 cm⁻¹ (standard KBr)
  • 11,000–375 cm⁻¹ (XT-KBr extended range)
• Spectral resolution: < 0.25 cm⁻¹
• Signal-to-noise ratio: 50,000:1
• Laser: solid-state diode laser (10-year warranty)
• Beamsplitter:
  • KBr/Ge (standard)
  • XT-KBr/Ge (optional)

Detection and Sources

• Detector:
  • DTGS (standard)
  • optional high-sensitivity detectors (e.g., MCT)
• Source:
  • stabilized IR source (non-migrating hot spot)
  • optional tungsten/halogen

Construction and Validation

• Optical system: sealed and purge-ready
• Validation: integrated SPV, ASTM/NIST traceable
• Compliance:
  • USP / Ph. Eur. / JP / CP
  • 21 CFR Part 11

Interface and Software

• USB 2.0
• Thermo Fisher Cloud
• Software: OMNIC™ / OMNIC Specta™

Dimensions and Weight

• Dimensions: 570 × 550 × 250 mm
• Weight: 32 kg

Electrical

• 100–240 V, 50–60 Hz
