The Thermo Scientific™ DXR3 Flex Raman Spectrometer is a research-grade Raman spectrometer specifically designed for seamless integration with other analytical techniques. This compact system is built on the same advanced optical design and architecture as the DXR3 Raman Spectrometer research platform, delivering high-quality Raman data while enabling flexible hyphenation and portability without compromising analytical performance.
Often described as a “Raman engine,” the DXR3 Flex features an open architecture that allows custom coupling to almost any type of equipment, in virtually any orientation. By combining Raman spectroscopy with complementary techniques in a single experimental setup, users can eliminate multiple measurements and assumptions, obtaining more complete answers faster.
With DXR3 Flex, a single measurement can provide insight into a sample’s physical, chemical, and structural characteristics, all acquired simultaneously and under identical conditions. The system is well suited for advanced materials characterization, chemical identification, process monitoring, and real-time analysis in both research and applied environments.

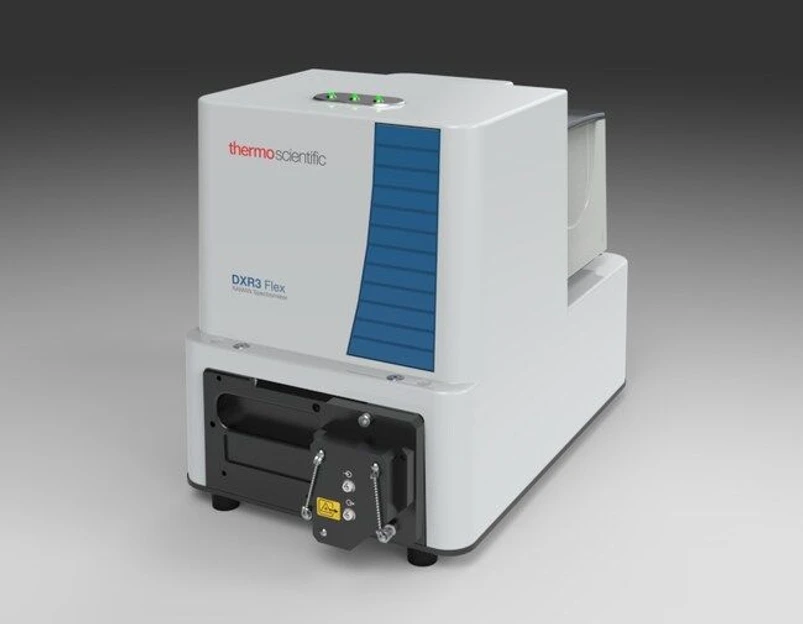

Thermo Scientific DXR3 Flex Raman Spectrometer
Key features
- Open architecture enabling custom integration with a wide range of analytical and process equipment
- Hyphenated measurements that combine data from multiple techniques in one experiment
- Research-laboratory-level spectroscopic performance
- Configurable excitation laser wavelengths and spectral resolution to optimize performance for specific materials
- Free-space optical coupling to eliminate fiber-optic losses and maximize sensitivity
- Broad range of available accessories, including fiber-optic coupling, macro and micro sample holders, objectives, cameras, and more
- Lasers are shareable and interchangeable with Thermo Scientific™ DXR3 Raman Microscopes
- Full compatibility with Thermo Scientific™ OMNIC™ Software, data formats, and spectral libraries; OMNIC D/S Software supports CFR 21 Part 11 compliance
Thermo Scientific DXR3 Flex Raman Spectrometer
Coupling options
- Rheology systems
- Hot-melt extrusion equipment
- Laboratory-scale and manufacturing-scale processing equipment
- Various microscopic stages and sample holders
- Fiber-optic-based systems with optical input for laser delivery and output for Raman signal collection
Typical applications
- Process and bioprocess monitoring
- Nanotechnology
- Materials science research
- Academic research
- Pharmaceutical analysis
- Geology
- Life science and biomaterials
- Polymer research
- Automotive and aerospace applications
- Cosmetics
Thermo Scientific DXR3 Flex Raman Spectrometer
Specifications
- Electrical Requirements: 100 to 240 VAC, 47 to 63 Hz
- Height (Metric): 37 cm
- Laser Power: Absolute excitation laser power at the sample controlled by OMNIC software
- Model: Flex
- Operating Temperature Range:
- Minimum temperature: 16°C
- Maximum temperature: 27°C
- Resolution:
- Full range grating: average 2 cm-1/CCD pixel element
- High resolution grating: average 1 cm-1/CCD pixel element
- Software Details: Thermo Scientific OMNIC software suite
- Weight (Metric): 25 kg
- Width (Metric): 29 cm
- Type: Spectrometer
- Unit Size: Each
The DXR3 Flex Raman Spectrometer is an ideal solution for laboratories that require maximum flexibility, robust performance, and straightforward integration of Raman spectroscopy into complex analytical workflows, backed by the expertise of Thermo Fisher Scientific.
