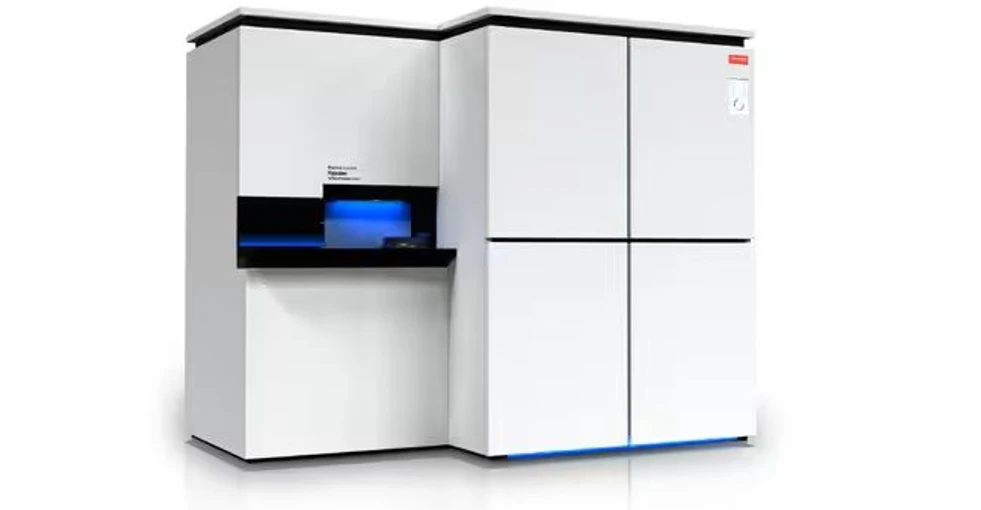

The Thermo Scientific Hypulse Surface Analysis System is a high-performance X-ray photoelectron spectroscopy (XPS) platform designed for accurate depth profiling of thin films, coatings, and complex multilayer materials. By combining traditional ion-beam techniques with femtosecond laser ablation (fs-LA), the system delivers efficient and chemically representative depth profiles from the surface down to deeply buried regions within the sample. Hypulse supports advanced materials research, process development, and failure analysis across a wide range of applications.
Thermo Scientific Hypulse Surface Analysis System
Achieve more accurate analysis
By integrating monatomic ion beam etching, cluster ion beam etching, and fs-LA depth profiling, the Hypulse System enables reliable analysis of a broader range of materials compared to conventional ion-beam-only approaches.
Enhance productivity
Fs-LA depth profiling allows multiple depth profiles to be acquired in the time typically required to process a single sample using ion beam profiling, significantly improving analytical throughput.
Gain deeper insight into materials
The system enables practical depth profiling beyond 10 µm into the sample. Buried layers and transition regions that are difficult and time-consuming to access using ion beam techniques can be reached more efficiently using fs-laser ablation.
Optimize analysis for different material types
Laser parameters can be tuned to the specific material, eliminating the need to choose between cluster and monatomic ions and simplifying the profiling of complex and composite samples.
Integrated fs-laser ablation system
The Hypulse System incorporates a fully integrated 1,030 nm femtosecond laser with high-quality optical components. Laser attenuation and control are managed through Thermo Scientific Advantage Software. As a Class 1 laser system, no special laser safety requirements are needed in the laboratory.

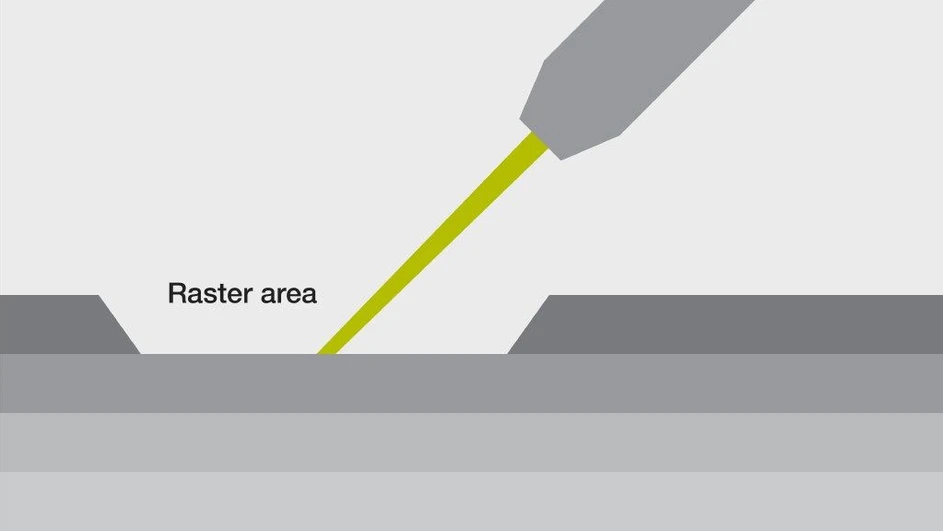

MAGCIS ion source
A Thermo Scientific MAGCIS Dual Beam Ion Source for XPS instruments is included as standard. Automatic source optimization and controlled gas handling ensure high performance and excellent experimental reproducibility.
Thermo Scientific Hypulse Surface Analysis System (1).jpg

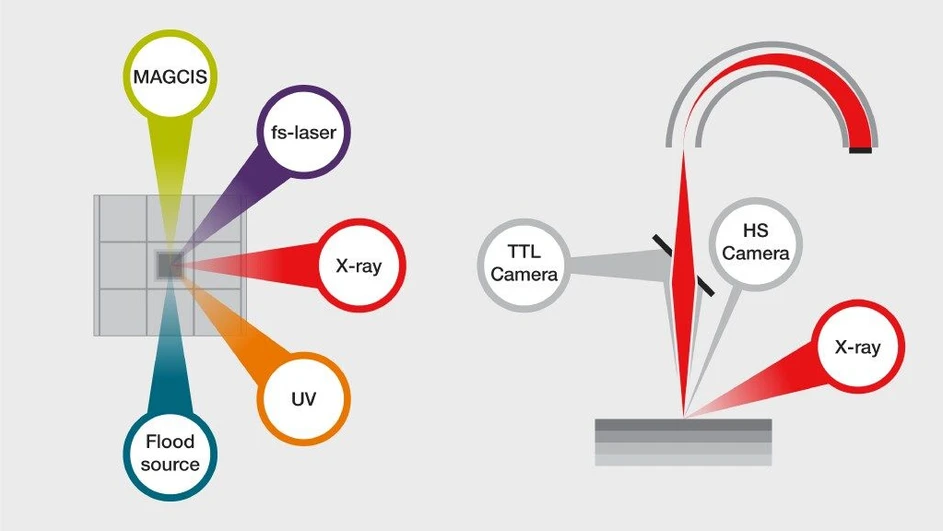

High-performance surface analysis
In addition to XPS, the system supports complementary surface-sensitive techniques such as REELS and ISS, providing enhanced chemical and structural information.
Thermo Scientific Hypulse Surface Analysis System (6).jpg

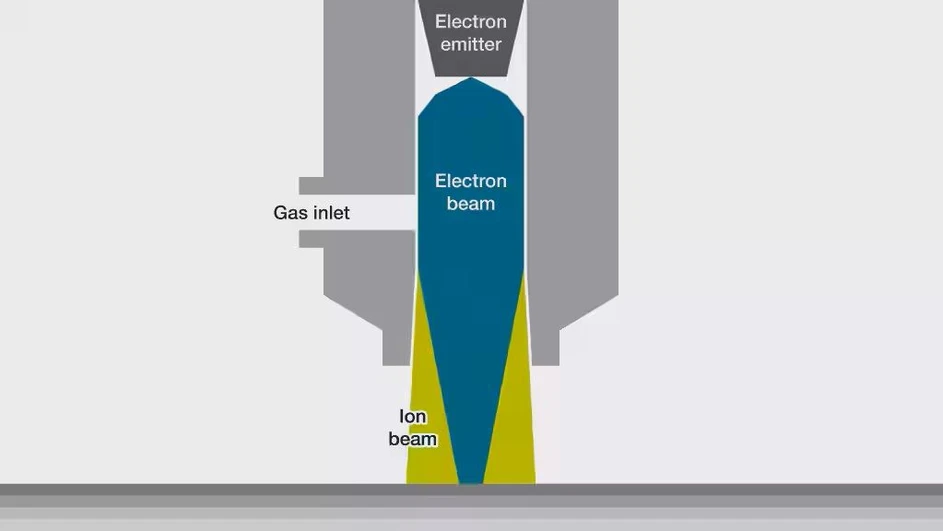

XPS analysis of insulating materials
The patented dual-beam flood source combines low-energy ion beams with very low-energy electrons (<1 eV) to prevent sample charging. This eliminates the need for charge referencing and enables reliable analysis of insulating samples.
Thermo Scientific Hypulse Surface Analysis System (3).jpg

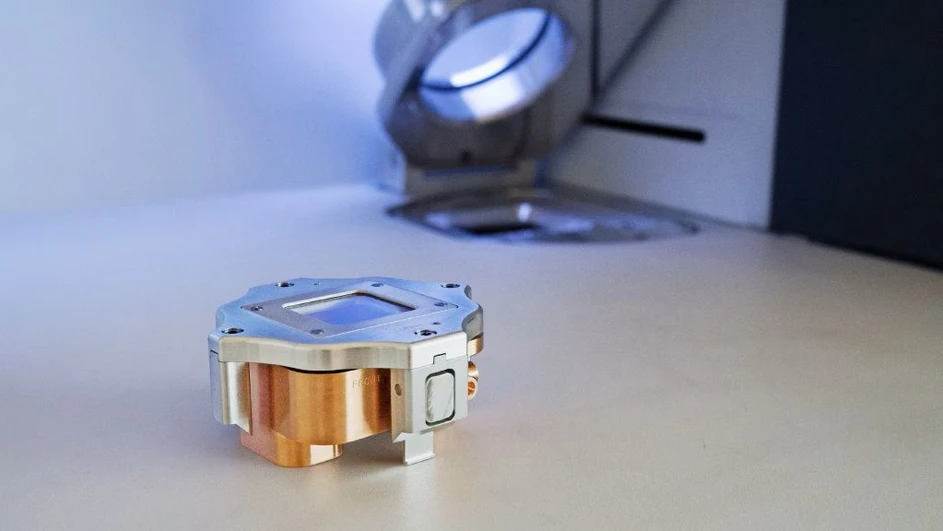

Optional XPS sample holders
Specialist sample holders are available for angle-resolved XPS, sample bias measurements, sample heating, and inert transfer from a glove box.
Thermo Scientific Hypulse Surface Analysis System (5).jpg

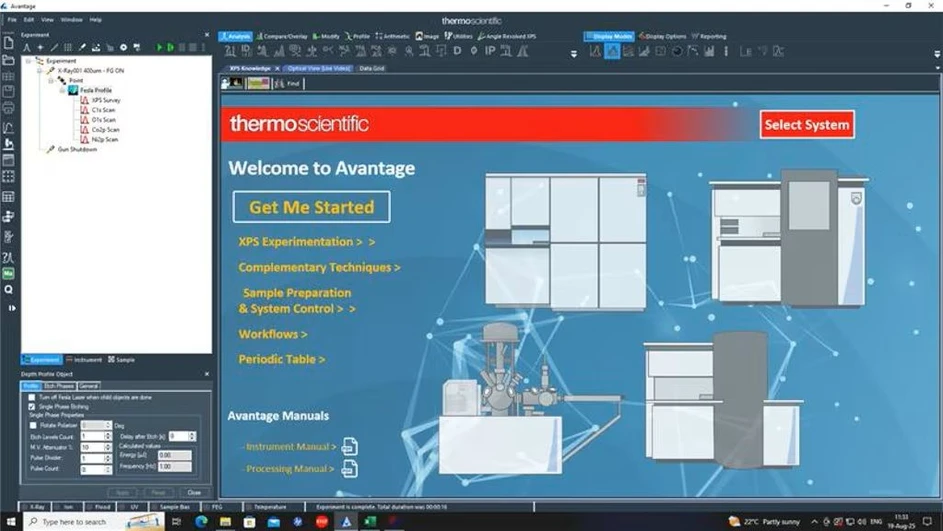

Advantage Software
Instrument control, data processing, and reporting are fully integrated within Advantage Software. The platform includes Knowledge View, offering comprehensive tutorials and reference materials to support efficient data interpretation.
Thermo Scientific Hypulse Surface Analysis System (4).jpg
Correlative XPS imaging and surface analysis workflow
XPS data can be correlated with SEM images using the correlative imaging and surface analysis (CISA) workflow via Thermo Scientific Maps Software.
