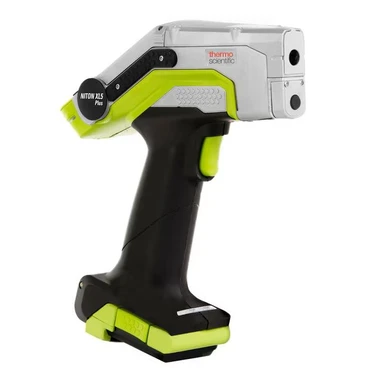

Thermo Scientific Niton XL5 Plus Handheld XRF Analyzer

⚙️ Features

• 5W X-ray tube
• Proprietary large area drift detector for light element detection (Mg, Al, Si, P, S)
• Lightweight design (2.8 lbs/ 1.3 kg)
• Miniaturized nose
• WiFi enabled
• Macro and micro cameras
• Hot swap battery
• Tilting, color touchscreen
• Directional keys
• Password protected security
• IP54 certified (splash/dust proof)

🧪 Applications

• Verification of metals and alloys in manufacturing operations
• Non-destructive field inspections for positive material identification
• Point-and-shoot sorting at scrap recycling operations
• Coating thickness measurements for single or binary metal layers
• Precious metal assay of bullion and jewelry
• Real-time geochemical analysis for mining exploration
• On-site heavy metal screening of polluted soils
• Screening of hazardous substances in consumer goods
• Custom applications on demand

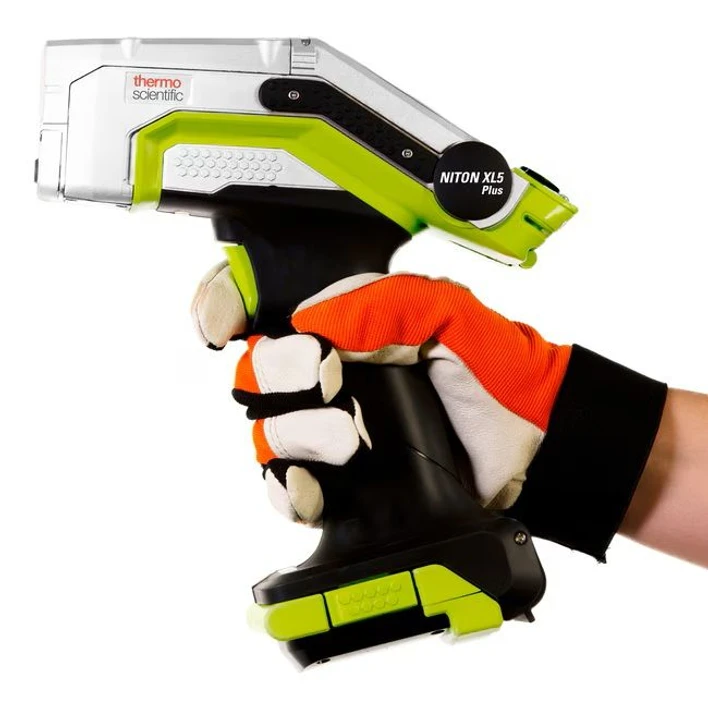

Thermo Scientific™ Niton™ XL5 Plus Handheld XRF Analyzer

📏 Specifications

• Certifications/Compliance: CE, RoHS, FCC, Industry Canada, Safety to IEC 61010-1:2010
• Data Entry:
  • Touchscreen keyboard
  • User customizable data entry
  • Optional wireless remote barcode reader
• Data Storage: 512 MB internal system memory / 16 GB industrial grade storage; Stores approximately 130,000 readings with spectra (fewer if macro and micro images are saved)
• Data Transfer: WiFi, USB-c
• Dimensions (L × W × H): 9.54 × 8.19 × 2.67 in. (24.23 × 20.8 × 6.78 cm)
• Display Type: Tilting, color, resistive touchscreen display
• Global Positioning System: Internal GPS and optional external GPS (via Bluetooth); GPS data are included with the sample information.
  NOTE: The GPS function is an optional feature.
• Languages: English, Chinese, Spanish, Portuguese, Russian, Japanese, German, Korean, French, Turkish, Italian
• Libraries: Default alloy libraries based on SAE, AISI, ASTM, AA, DIN, GB standards. Users may create, clone and edit libraries.
• Licensing: Varies by region. Contact your local distributor.
• Operating Environment:
  • Temperature: 0°C to 50°C (external fan recommended when ambient temperature is greater than 33°C)
  • Humidity: 10% to 90% relative humidity non-condensing
• Operating System: Linux
• Optional Accessories:
  • Portable test stand
  • Mini test stand
  • Desk/wall holder
  • Hotwork stand off
  • Soil guard
  • Belt holster
  • Bluetooth printer
• Power Consumption: 12V lithium-ion battery, or 12V DC, 3A, 3.6W power supply. Hot swap functionality keeps analyzer powered during battery replacements.
• Security Features: Password-protected user security
• Software: Support software: NitonConnect PC software
• Spot Size:
  • Standard: 8mm collimation
  • Optional: 3mm small-spot collimation
• Standard Accessories:
  • Locking shielded carrying case
  • Two (2) lithium-ion battery packs
  • One (1) 110/220 VAC battery charger/AC adapter
  • Check samples
  • Safety lanyard
  • PC connection cable (USB)
• System Details: Built-in standardization and health check verify system integrity and operating conditions
• Type: XL5 Plus Handheld XRF Analyzer
• Weight (English): 2.8 lb. with battery
• Weight (Metric): 1.3 kg with battery
• X-Ray Source Type:
  • X-ray tube: Ag anode (6–50kV, 0–500µA, 5W max)
  • Filter: Six (6) position filter wheel for enhanced spectral range coverage
  • Current: Dynamically adjustable current for optimal sensitivity on every analysis
• Detector Type: High count rate, high resolution, extra large area silicon drift detector (11µm graphene window). Detector ProGuard protection included.
• Unit Size: Each
