Emissions of Halomethanes from Bioweathered Lopingian Kupferschiefer Black Shale (Fore-Sudetic Monocline, SW Poland)

Halomethanes (HMs) are key contributors to ozone depletion and climate forcing, yet their natural sources remain undercharacterized. This study examines bioweathered Lopingian Kupferschiefer black shale in SW Poland as a potential source of HM emissions. Rich in fossil organic matter (FOM) and iron-bearing minerals, the shale was found to emit various chlorinated and brominated mono- to tetrahalomethanes.

Using gas chromatography, the researchers propose a mechanism involving Fe³⁺-catalyzed abiotic reactions with organic precursors and halides. The findings identify a previously unrecognized deep subsurface source of halomethanes and report, for the first time, natural emission of tetrachloromethane.

The original article

Emissions of Halomethanes from Bioweathered Lopingian Kupferschiefer Black Shale (Fore-Sudetic Monocline, SW Poland)

Michał Zalesko*, Robert Stasiuk, Renata Matlakowska

Environ. Sci. Technol. Lett. 2025, XXXX, XXX, XXX-XXX

https://doi.org/10.1021/acs.estlett.5c00593

licensed under CC-BY 4.0

Selected sections from the article follow. Formats and hyperlinks were adapted from the original.

Halogenated methane derivatives (halomethanes, HMs) are significant sources of atmospheric halogens, which play an important role in ozone depletion and contribute to radiative forcing. (1,2) The most abundant HM in the atmosphere is chloromethane, which is responsible for 16.9% of tropospheric chlorine. (2) In addition to anthropogenic sources, several natural sources of HMs have been described. (3,4) However, the amount of naturally produced HMs appears to be underestimated. (2) Bahlmann et al. (2019) suggest the existence of a major missing source of atmospheric chloromethane. (5)

Therefore, it is worth considering what other natural sources exist. Studies by Keppler et al. (2000) indicate that HMs were formed from natural organic matter through abiotic processes that were catalyzed by Fe³⁺. (6,7) In 2009, Huber et al. presented the mechanism of trihalomethane formation from dihydroxylated monocyclic aromatic hydrocarbons (DMAHs) in the presence of Fe³⁺ and (H₂O₂). The organic compound is oxidized and simultaneously halogenated by halide radicals in the presence of reactive oxygen species (ROS), both arising from a Fenton-like reaction between H₂O₂, Fe³⁺, and halides. (8−10)

In our studies, we consider whether iron-catalyzed HM formation processes can occur in highly mineralized deposits of fossil organic matter (FOM). It is worth noting that FOM, in the form of kerogen, is considered to be the largest reservoir of organic carbon on Earth. It is estimated that kerogen contains ∼15,000,000 Gt of fossil organic carbon, an amount that significantly exceeds the amount (∼4,130 Gt) found in fossil fuels (such as gas, oil and coal). (11)

This study focuses on the organic-rich deep black shale environment, represented by the Kupferschiefer black shale (BS), which contains both FOM (1–30 wt %, average 6 wt %, corresponding to type II kerogen) and Fe-containing minerals. (12−14) The extractable fraction of FOM consists of long-chain saturated and unsaturated hydrocarbons, polycyclic aromatic hydrocarbons (PAHs), and acid esters. (15) The ore minerals in BS are mainly represented by bornite [Cu₅FeS₄], chalcocite [Cu₂S], digenite [Cu₉S₅], chalcopyrite [CuFeS₂], pyrite [FeS₂], sphalerite [ZnS], galena [PbS], covellite [CuS], and minerals from the tennantite–tetrahedrite series [(Cu, Fe)₁₂As₄S₁₃–(Cu, Fe)₁₂Sb₄S₁₃]. (16)

Previous studies indicate colonization by microorganisms and the bioweathering of outcropped Kupferschiefer BS profiles. (15) This study confirmed that FOM underwent enzymatic oxidation, mediated primarily by chemoorganoheterotrophic bacteria. Furthermore, the dissimilative enzymatic oxidation of primary sulfidic minerals by chemolithotrophic bacteria was detected.

This study aims to investigate whether bioweathered BS can be a source of HM emissions. In addition, we attempted to predict potential substrates and factors of HM formation. As sources of these substrates and factors, we considered BS bioweathering products and mine water (MW) (Figure SI1/1): (1) as potential substrates, we indicated monocyclic aromatic hydrocarbons (MAHs) formed by FOM bioweathering; (2) as a halogenation factor, we indicated Fe³⁺ arising from the oxidation of primary Fe²⁺-containing minerals; (3) as a source of halides, we indicated high saline MW and secondary minerals on the surface of weathered BS.

In order to achieve these objectives, we studied bioweathered BS covered by secondary minerals and MW. The following studies were conducted: (1) detection and identification of HMs; (2) prediction of MAHs in FOM extracted from bioweathered BS and MW; (3) detection of Fe and halides in bioweathered BS and MW; and (4) Fe³⁺ and halide detection in secondary minerals present on the surface of bioweathered BS.

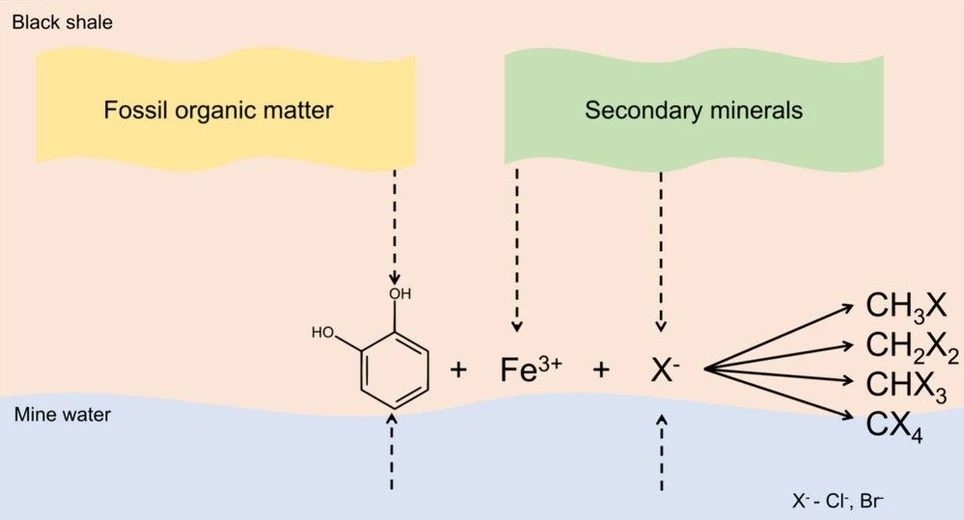

This experimental approach has enabled us to propose a hypothetical mechanism of HM formation in deep underground environments and reveal a previously unknown natural source of HMs.

Methods and Materials

Extraction of Volatile Organic Compounds

Volatile organic compounds were extracted using a modified EPA Method 5021A (2014). (17) A hundred grams of BS were placed in 100 mL bottles with septa, and 50 mL of methanol was added. The mixture was incubated at 50 °C for 72 h. For analysis, gas samples were collected using a gastight syringe (Hamilton Company, USA), or solid-phase microextraction (SPME, 65 μm, PDMS/DVB, Supelco, USA) was used. (18) More detailed information is provided in SI1.

Extraction of Bituminous and Dissolved Organic Compounds

Organic compounds were extracted from BS and MW using a mixture of dichloromethane/methanol with an automatic Soxhlet apparatus (SER 158, Velp, Italy) and chloroform in a separatory funnel, respectively. More detailed information is provided in SI1.

Gas Chromatography with Mass Spectrometry (GC-MS) and Electron Capture Detector (GC-ECD)

Volatile compounds were analyzed using GC-MS (Agilent GC 7890A, MS 5975c, Agilent Technologies, USA) and GC-ECD (GC 7890A, μECD, Agilent Technologies, USA), both equipped with a FS CAP VOCOL column (60 m × 0.25 mm I.D., 1.5 μm film thickness, Supelco, USA) according to modified EPA Method 8260(1986). (19) Commercial solutions of CH₃Cl (Restek, Germany), CHCl₂, and CHCl₃ (VWR Chemicals, USA), as well as the VOA Stock Mix 8260B MegaMix Calibration Mix (Restek, Germany), were used as external standards.

Compounds extracted from BS and MW were analyzed by GC-MS (Agilent GC 7890A, MS 5975c) using an HP5-MS column (30 m × 0.25 mm I.D., 0.25 μm film thickness, Agilent Technologies, USA). The obtained mass spectra were compared with the Wiley 3.2 database (The Wiley Registry of Mass Spectral Data, eighth edition). More details are provided in SI1.

Inductively Coupled Plasma with Mass Spectrometry (ICP-MS)

The elemental analysis of the weathered BS and MW was determined by ACME Analytical Laboratories Ltd. (Vancouver, BC, Canada). LF202 Total Whole Rock Characterization with AQ200 add-on (LF302 + LF100-EXT) and SO200 – ICP-MS Analysis of Natural Waters were conducted on BS and MW samples, respectively.

X-ray Fluorescence (XRF)

Detection of Fe, Cl, and Br in BS was performed by using a Bruker S1 Titan Hand-held ED-XRF Analyzer.

Scanning Electron Microscopy (SEM) with Energy Dispersive X-ray Spectroscopy (EDS)

Analysis was performed using backscattered and secondary electron techniques with a JEOL JSM-6380LA SEM instrument (JEOL Co., Japan). The chemical composition was determined by using a CAMECA SX100 microprobe (CAMECA, France). More details are provided in SI1.

X-ray Powder Diffraction (XRD) Analyses

XRD analyses of powdered samples were conducted using a PHILIPS X’PERT PRO diffractometer (PANalytical B.V., The Netherlands). The samples were manually ground in an agate mortar, mounted on a standard metal holder, and irradiated with CoKα radiation. Data was collected over a 2Θ range of 2.505° to 95.996° in step-scan mode, with a step size of 0.001° 2Θ and a count time of 1 s per step.

Results and Discussion

Identification of HM Emitted from the Weathered BS

Using GC-MS with the headspace extraction method, chloromethane and dichloromethane were identified in all BS samples analyzed with high probability (86–94%) (Figure 1; Figure SI2/1). HMs were identified in all GC-ECD analyses. Using SPME, bromodichloromethane, dibromochloromethane, dichloromethane, tetrachloromethane, and trichloromethane were identified in all BS samples. Chloromethane was detected in all BS samples, except BS2, while dibromomethane was present exclusively in BS2. Relative abundance (z-score) analyses indicate higher emissions of HM from samples collected at site TS2 (Figure 1).

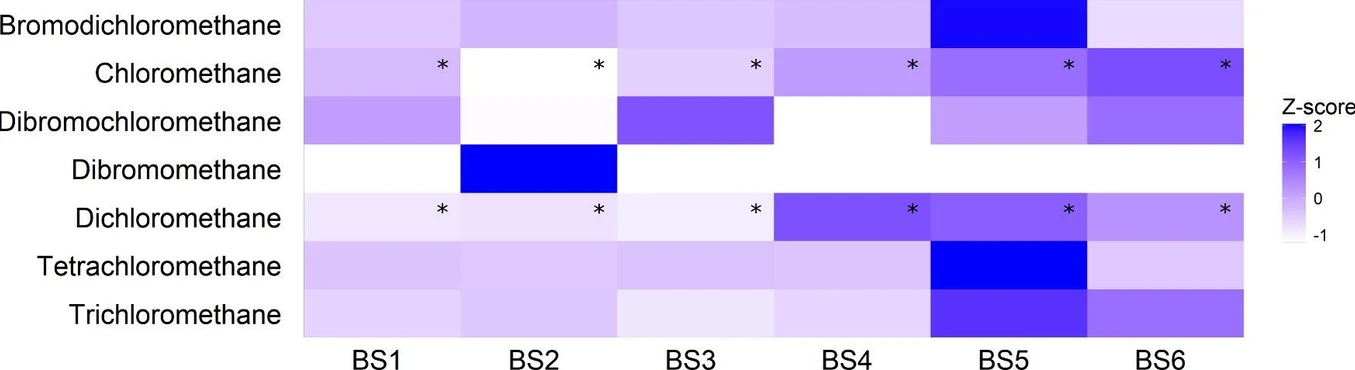

Environ. Sci. Technol. Lett. 2025: Figure 1. A relative abundance of HMs found in BSs through SPME extraction and GC-ECD analysis. An asterisk indicates compounds identified by GC-MS. GC-ECD chromatograms, a detailed list, and mass spectra of the identified HMs can be found in SI2 (Table SI2/1–2; Figures SI2/1–8). GC-ECD chromatograms of standards and controls can be found in SI2 (Figures SI2/9–11).

Environ. Sci. Technol. Lett. 2025: Figure SI2/7. Chromatograms of the volatile phase obtained from methanol extracts of TS1 (GC-ECD, SPME).

Prediction of Potential Organic Substrates for HM Formation in Bioweathered BS and MW

Potential organic substrates were predicted with Level 2 confidence according to Koelmel et al. 2022. (20) In the extractable fraction of BSs several MAHs are present: benzoic acid and 1,2-dicarboxybenzene derivatives (Figure 2). The MAH compounds may undergo enzymatic oxidation through microbial dioxygenases and monooxygenases to DMAHs, such as protocatechuate and catechol. (15) Esters of 1,2-dicarboxybenzene acids can be deesterified by bacterial esterases. (21) In MWs, the diversity of 1,2-dicarboxybenzene derivatives is higher, which may indicate the ongoing degradation and transformation of organic matter (Figure 2). The presence of dioxygenases, monooxygenases and esterases was previously confirmed in a metagenome and metaproteome of microbiocenoses that inhabit the bioweathered BS. (15)

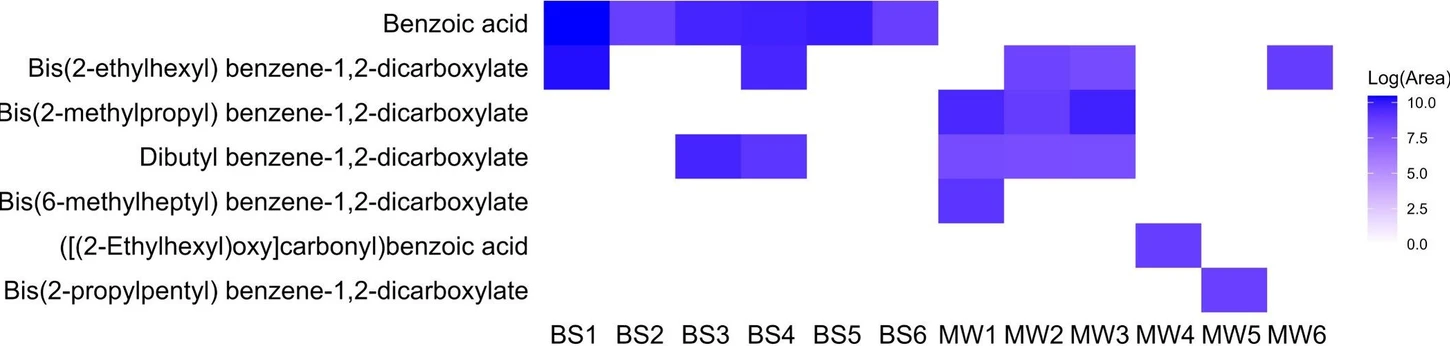

Environ. Sci. Technol. Lett. 2025: Figure 2. The abundance of benzoic acid and 1,2-dicarboxylic acid derivatives predicted with Level 2 confidence in BSs and MWs. Mass spectra of the predicted organic compounds are provided in SI3.
