The Thermo Scientific™ ARL™ EQUINOX 3000 measurements are very fast compared with other diffractometers in that the unique Inel curved detector can measure all diffraction peaks simultaneously. Due to this acquisition in real time, all kinetic studies are facilitated.
The Thermo Scientific™ ARL™ EQUINOX 3500 is an evolution of ARL EQUINOX 3000 model. It is exactly the same configuration except that it works with a bigger radius of curvature detector. So, obtained data have a better resolution.
- Research
- Environment
- Geology, Cement, Mining
- Metallurgy
- Pharmaceuticals
- Education
Thermo Scientific ARL EQUINOX 3000 Benchtop X-Ray Diffractometer: No scanning required. Measures the whole 2 theta range simultaneously and in real time.
The ARL EQUINOX 3000 is a a research-grade diffractometer with a very high resolution diffraction system providing the user a choice of features including higher resolution detectors, a larger sample area and choice of X-ray sources.
The free space in the sample compartment is very large and will accommodate practically any sample and any sample handling device including furnaces, auto samplers, large assemblies, etc.
- Real time acquisition
- Extremely accurate
- Easy to use
- No alignment needed
- Very reliable
- Superb resolution
- No maintenance
- You want to perform transmission analysis? Choose either the Sample Spinner for reflection and transmission analysis on powder samples or the capillary sample holder for Transmission mode analysis depending on your needs.
- You need to analyze several powder samples a day? Optimize your throughput with the 6 or 30 position sample changer.
- You need to perform grazing incidence measurement? Try our Thin Layer analysis attachment.

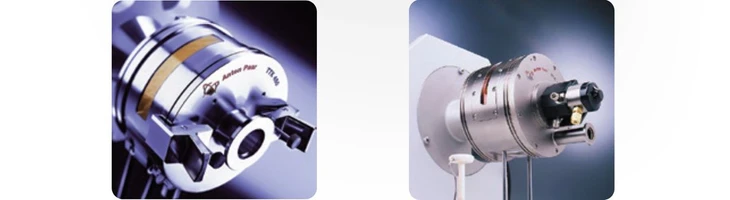

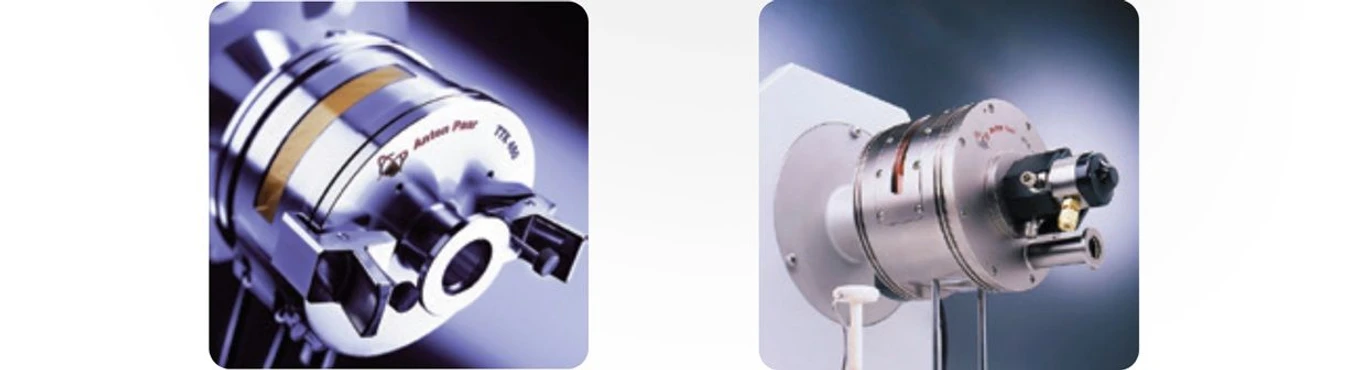

Thermo Scientific ARL EQUINOX 3000 Benchtop X-Ray Diffractometer: HTK1200N, TTK450.
- This system allows you to work with controlled temperature or atmosphere chamber. Anton Paar and other suppliers chambers can be availabledepending on your needs.

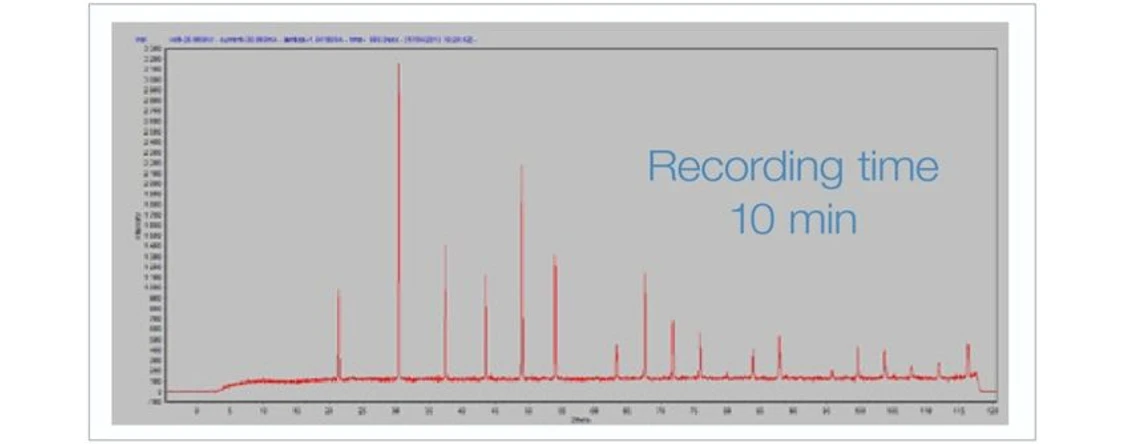

Thermo Scientific ARL EQUINOX 3000 Benchtop X-Ray Diffractometer: LaB6 powder sample recorded on ARL EQUINOX 3000 in reflection mode.
Specification
- X-ray source: Generator: 3500 W (60kV / 60mA - Option 30kV limitation) Standard sealed X-ray tube: Cu, Co, Mo, ... radiation
- Detector:
- Curved Position Sensitive X-ray Detector, CPS120
- Curvature radius: 250mm
- Acquisition in real time over 120° 2Theta
- Option: CPS590 (500mm, 90° 2Theta – EQUINOX 3500)
- Goniometric table:
- No moving parts
- Acquisition in asymmetric mode
- Sample holders:
- Fixed, with or without sample rotation
- Reflection or transmission mode
- Sample changer: 6 or 30 positions
- Thin layer attachment
- Special camera:
- Heating camera: low and high temperature
- Humidity chamber, Electrochemistry cell
- Optic: Monochromatic
- Computer: Windows© 8, 7 Vista, XP
- Software:
- Real time diffractogram display
- Multiple and automatic recording
- Peak search
- Deconvolution with several shapes
- Phase identification and quantification
- Degree of crystallinity determination
- Cell parameters, crystallite size, lattice strain
- Crystal structure analysis
- Transition phase
- Thin film (reflectometry, etc.)
- Rietveld analysis
- Free open database for search match
- Option: ICDD PDF2 or PDF4 databases
- Power: 30-32A / 208-230V / 50-60 Hz
- Cooling water: Flow: ≈ 3,5 L/min - T°C: ≈18 to 25 °C
- Dimensions:
- 1565 mm H x 750 mm D x 1040 mm W EQUINOX 3000
- 1815 mm H x 744 mm D x 1206 mm W EQUINOX 3500
