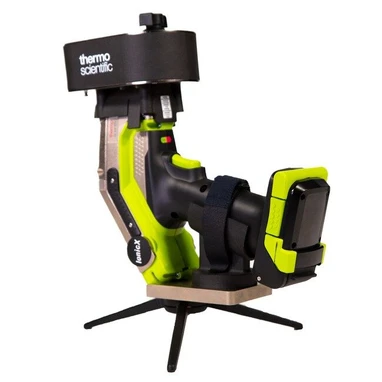

Thermo Scientific IonicX Portable XRF Analyzer

Identify ionic salts in seconds with minimal sample preparation. The Thermo Scientific™ IonicX™ Portable XRF Analyzer provides:

• Fast and accurate verification of ionic salt raw materials
• High sample throughput for pharmaceutical and biopharmaceutical manufacturers

Cut testing time and costs by replacing:

• time-consuming
• resource-intensive
• wet chemistry and benchtop methods

with a ✅ non-destructive, ✅ non-contact, ✅ portable XRF analyzer for ionic salts.

⚙️ Key Features

• Portable verification of a wide range of ionic salts in seconds
• Compliant with 21 CFR Part 11:
  • electronic signatures
  • user access control
  • audit trails
• Non-destructive testing of raw materials
• Minimal sample preparation
• Simple operation, no extensive operator training required
• Lightweight and compact design for easy portability
• Wi-Fi enabled
• Hot Swap Battery
• IP54 Certified – splash and dust proof

Thermo Scientific™ IonicX Portable XRF Analyzer

📏 Specifications

• Bluetooth: Supports print functionality and barcode reader
• Camera:
  • Macro Camera: Integrated CCD macro camera for capturing overview images of parts and tagging measurement locations
  • Micro Camera: Integrated CCD micro camera for locating and recording measurement positions
• Certifications/Compliance:
  • EN 55011:2010
  • EN 61326:2013
  • FCC 47 CFR Part 15
  • Safety EN 61010; 2010 (3rd Ed) with national deviations for US and Canada
  • RoHS EN 50581; 2012
• Data Entry:
  • Touchscreen keyboard
  • User customizable data entry
  • Optional wireless remote barcode reader
• Data Storage:
  • 512 MB internal system memory/16 GB industrial grade storage
  • Stores approximately 130,000 readings with spectra (fewer if macro and micro images are saved)
• Data Transfer: Wi-Fi, USB
• Dimensions: 12 × 12 × 8 in. (30.48 × 30.48 × 20.32 cm)
• Display Type: Tilting, color, resistive touchscreen display
• IP Rating: IP54 (splash and dust proof)
• Languages: English
• Licensing: Varies by region; Contact your local distributor
• Operating Environment:
  • Temperature: 0°C to 50°C (external fan recommended when ambient temperature is greater than 33°C)
  • Humidity: 10% to 90% relative humidity non-condensing
• Operating System: Linux
• Optional Accessories:

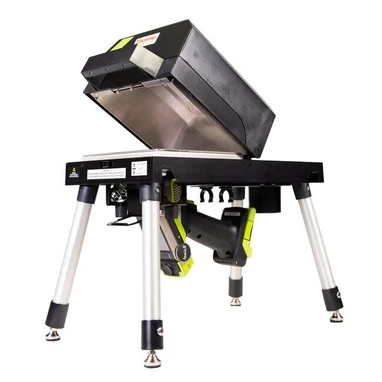

  • Thermo Scientific portable test stand
  • Thermo Scientific mini test stand
• Power Consumption: 12V lithium-ion battery, or 12V DC, 3A, 3.6W power supply
• Security Features: Password-protected user security
• Software: IonicX PC software
• Spot Size: Standard: 8 mm collimation
• Standard Accessories:
  • Locking shielded carrying case
  • Two (2) lithium-ion battery packs
  • One (1) 110/220 VAC battery charger/AC adaptor
  • Check samples
  • Safety lanyard
  • PC connection cable (USB)
• System Details: Built-in standardization via automatic system check
• Weight (English): 5.8 lbs. with battery and test stand
• Weight (Metric): 2.6 kg with battery and test stand
• X-Ray Source Type:
  • X-Ray Tube: Ag anode (6–50 kV, 0–500 μA, 5W max)
  • Dynamically adjustable current for optimal sensitivity on every analysis
• Applications: Raw Material Testing
• Detector Type: Proprietary Large Area Drift Detector
• Tube Voltage: 6 to 50 kV
• Unit Size: Each
