Thermo Scientific ARL SMS-Omega XRF Instrument

Keep up with production demands with automated XRF analysis. When different types of material have to be processed in parallel, the Thermo Scientific™ ARL OPTIM'X™ WDXRF Spectrometer with the Thermo Scientific™ ARL™ SMS-Omega XRF Instrument is the solution. Automatic sample preparation and handling without user intervention, combined with rapid analysis, provide high-quality results. This innovative solution has a compact footprint of less than 1 m², so it can be installed in centralized laboratories or on production shop floors, wherever fully automated industrial production control is needed.

This cost-effective system is a unique combination of Thermo Scientific XRF and automation technology for fully automated sample preparation and analysis of one material type.

Main Features

• Unattended instrument monitoring and integrated audit trail functions

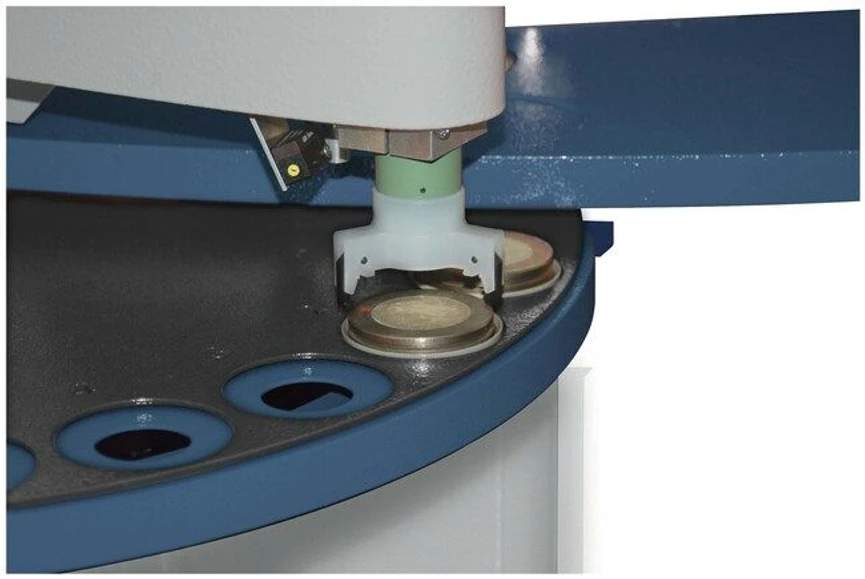

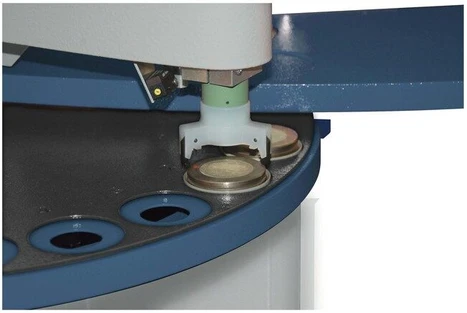

• Sample handling arm equipped with a suction device (metals version) or a gripper (oxide version) loads samples for analysis.
• Samples processed under strict identical and reproducible conditions
• Fixed circular magazine
• XRF functionality provided by the flexible and compact Thermo Scientific™ ARL™ OPTIM'X WDXRF Instrument

Thermo Scientific™ ARL™ SMS-Omega XRF Instrument

Features of the OPTIM'X WDXRF Instrument

• WDXRF platform with sequential and/or simultaneous capabilities
• Configurable to cover all elements from fluorine (F) to uranium (U) in sequential mode
• Fast analysis of solids, liquids and loose powders with superior spectral resolution
• No water cooling or gas supply required (depending on configuration)
• Closely coupled optics for increased intensity (50% higher than conventional geometry)

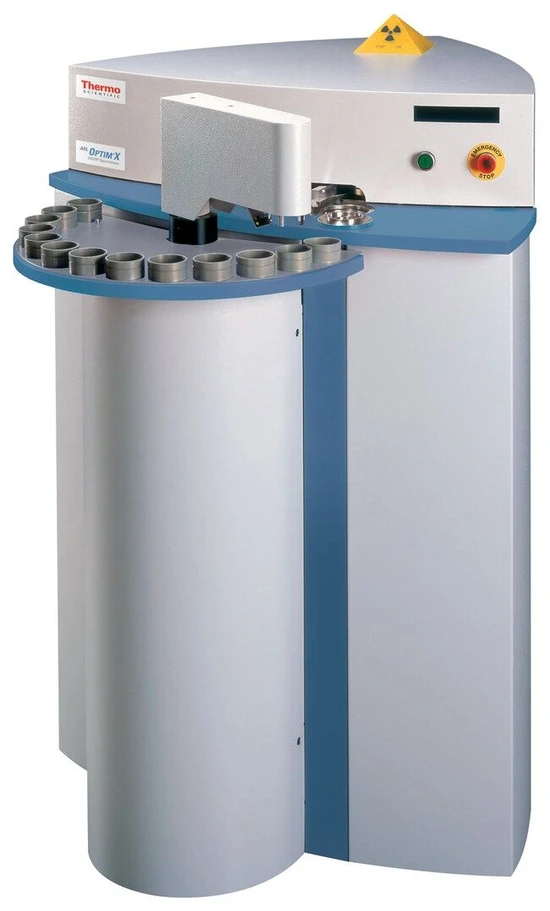

Thermo Scientific™ ARL™ OPTIM'X WDXRF Spectrometer

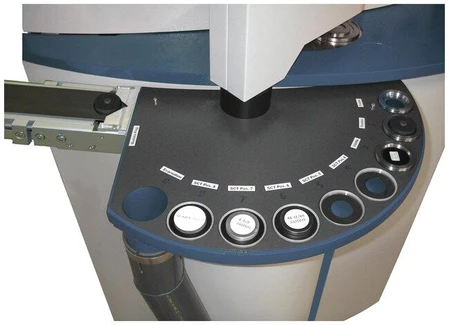

Features of the Fixed Circular Magazine

• Eight positions for storing reference standards
• Allows occasional manual introduction of prepared samples
• One additional position dedicated to filing production samples following analysis
• The complete system can also be supplied within a Thermo Scientific™ ARL™ QuantoShelter container for in situ analysis closer to the process.

Thermo Scientific™ ARL™ SMS-Omega XRF Instrument
