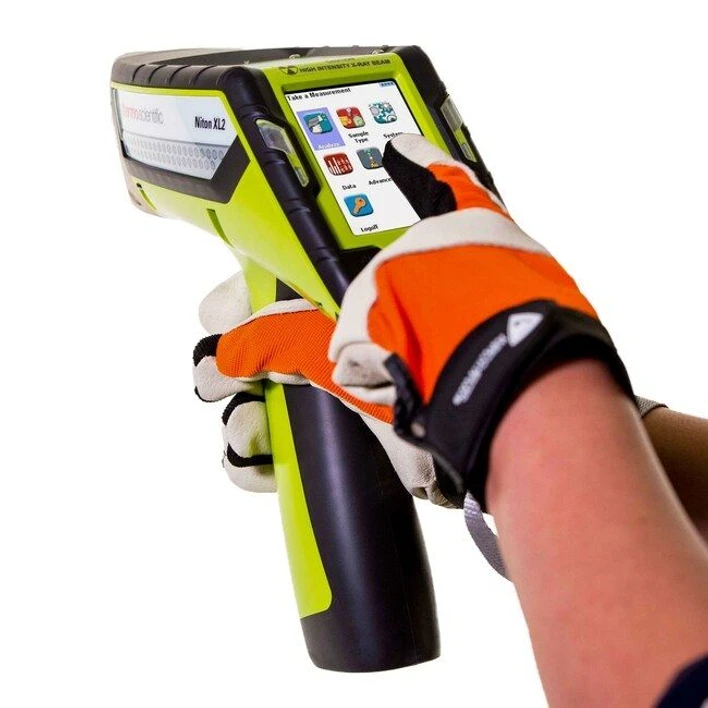

Thermo Scientific Niton XL2 Plus Handheld XRF Analyzer

Confidently perform elemental analysis with the Thermo Scientific™ Niton™ XL2 Plus handheld XRF analyzer. When durability, performance and productivity are top of mind, industrial businesses rely on the Niton XL2 Plus handheld XRF analyzer for fast results and low detection limits.

Identify pure metals and alloys, or obtain geochemical data, the Niton XL2 Plus provides operators the ability to scan a broad range of materials in one versatile analyzer.

⚙️ Features & Benefits

• 2W X-Ray Tube
• Silicon Drift Detector (SDD) for light element detection (Mg, Al, Si, P, S)
• Detector ProGuard Protection
• Micro Camera
• Hot Swap Battery
• Touch Screen and Directional Keys
• Password Protected Security
• IP54 Certified (Splash/ Dust Proof)
• Nose Cone Alignment Guides

🧪 Applications

• Verification of metals and alloys in manufacturing
• Quality Assurance testing for positive material identification
• Point-and-shoot sorting at scrap recycling operations
• Coating thickness measurements from single element layers
• Precious metal assay of bullion and jewelry
• Geochemical analysis for ore trading and grade control
• On-site heavy metal screening of polluted soils
• Lead in paint inspection of industrial facilities
• Screening of hazardous substances in consumer goods

Thermo Scientific™ Niton™ XL2 Plus Handheld XRF Analyzer

📏 Specifications

• Analytical Range: Mg–U
• Available Analytical Modes: General Metals, Precious Metals, Coatings, Mining, Soils, Electronic Alloys, Plastics, Industrial Lead in Paint, Lead in Paint Products
• Bluetooth: Supports print functionality, external GPS connectivity and barcode reader
• Camera: Integrated CCD micro camera for locating and recording measurement positions
• Certifications/Compliance: CE, RoHS, FCC, Industry Canada, Safety to IEC 61010-1, UL 61010-1, IP54 (splash and dust proof)
• Data Entry:
  • Touchscreen keyboard
  • User customizable data entry
  • Optional wireless remote barcode reader
• Data Storage:
  • 64 MB internal system memory / 128 MB internal user storage
  • Stores approximately 10,000 readings with spectra (fewer if images are saved)
• Data Transfer: USB, Bluetooth, RS-232 serial communication
• Description: Niton XL2 Plus Handheld XRF Analyzer
• Dimensions (L × W × H): 10 × 10.8 × 3.9 in (25.6 × 27.5 × 10 cm)
• Display Type: Fixed angle, color, resistive touchscreen display
• Global Positioning System: Optional external GPS (via Bluetooth)
• Languages: English, Chinese, Spanish, Portuguese, Russian, Japanese, German, Korean, French, Italian, Czech
• Libraries:
  • Default alloy libraries based on SAE, AISI, ASTM, AA standards
  • Users may create and edit libraries
• Licensing: Varies by region. Contact your local distributor.
• Operating Environment:
  • Temperature: -10 °C to 50 °C
  • Humidity: 0% to 80% relative humidity non-condensing
• Operating System: Proprietary
• Optional Accessories:
  • Thermo Scientific™ portable test stand
  • Thermo Scientific™ mobile test stand
  • Thermo Scientific™ field mate test stand
  • Thermo Scientific™ soil guard
• Power Consumption:
  • 7.4V lithium-ion battery, or 12V DC, 3A, 36W power supply
  • Hot swap functionality keeps analyzer powered during battery replacements
• Security Features: Password-protected user security
• Software: Support Software: Niton Data Transfer (NDT) PC software
• Spot Size: 8 mm collimation
• Standard Accessories:
  • Locking shielded carrying case
  • Two (2) lithium-ion battery packs
  • One (1) 110/220 VAC battery charger/ AC adaptor
  • Check samples
  • Belt holster
  • Safety lanyard
  • PC connection cables (USB and RS-232)
• System Details: Built-in standardization via automatic system check
• Weight (English): 3.4 lbs with battery
• Weight (Metric): 1.53 kg with battery
• X-Ray Source Type:
  • X-Ray Tube: Ag anode (6–45 kV, 1–200 µA, 2W max)
  • Dynamically adjustable current for optimal sensitivity on every analysis
• Applications: Identify pure metals and alloys, detect tramp elements, or obtain geochemical data
• Detector Type:
  • Silicon Drift Detector (SDD)
  • Detector ProGuard protection included
• Tube Voltage: 6 to 45 kV
• Unit Size: Each
