Thermo Scientific Niton DXL Precious Metal Analyzer

⚙️ Features

• Standard analytical range: 22 elements including all precious metals.
• Nondestructive analysis with near instantaneous results.
• Exceptionally fast, easy to use – see results in seconds on a bright, touch-screen color display.
• No harsh chemicals or acids that can burn your fingers, ruin clothing, and damage countertops.
• Easier, faster, more accurate than nitric acid test methods.
• Faster, more comprehensive analysis than fire assay, with comparable accuracy.
• Compact, elegant, ergonomic design for countertop placement in retail environments.
• Measure the content of all gold and precious metals without manually changing the calibration.
• Precisely determine the presence and concentration of other trace alloying elements and dangerous heavy elements, which could impact valuation and future refining needs.
• Built-in CCD camera makes precise sample positioning effortless.
• Optional small‑spot focus allows isolation and testing of small components.

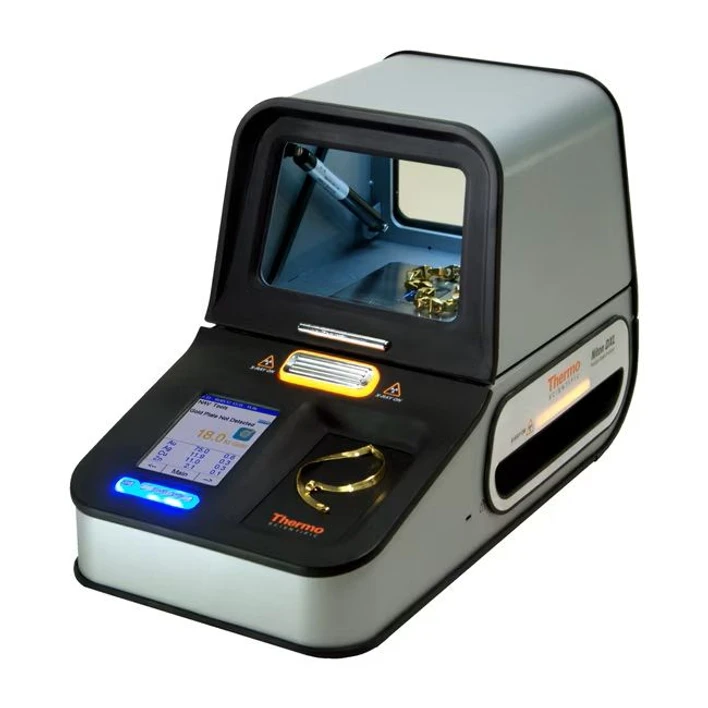

Thermo Scientific™ Niton™ DXL Precious Metal Analyzer

📏 Specifications

• Applications: Non-destructive method to test the purity and chemistry of precious metals
• Data Memory: 64MB internal system memory/128MB internal user storage
• Data Storage: Internal >10,000 readings with spectra
• Data Transfer: USB
• Description: Niton DXL Precious Metal Analyzer
• Detector Type: High-performance Si-PIN semiconductor
• Display Type: Color touch-screen display
• Item Description: Niton DXL Precious Metal Analyzer
• Height (English): 10.4 in.
• Height (Metric): 265 mm
• Length (English): 15.6 in.
• Length (Metric): 396 mm
• Width (English): 8.1 in.
• Width (Metric): 206 mm
• Length (English) Chamber: 6.9 in.
• Length (Metric) Chamber: 172 mm
• Height (English) Chamber: 5.2 in.
• Height (Metric) Chamber: 133 mm
• Width (English) Chamber: 7.2 in.
• Width (Metric) Chamber: 184 mm
• Optional Accessories:
  • 3mm small-spot focus feature
  • Additional battery pack
  • External battery charger
  • Locking shielded carrying case
• Power Consumption: 80µA
• Security Features: Password-protected user security
• Standard Accessories:
  • One 7.2V 4-cell lithium-ion battery pack (charges in the instrument while on external power)
  • 110/220V AC adapter; USB PC connection cable
  • Thermo Scientific™ Niton Data Transfer (NDT™) PC software
  • 8mm measurement area; Internal CCD camera for precise sample positioning
  • Adhesive Tack for stabilization of samples
  • Spare puncture-resistant x-ray windows
• Tube Type: Ag anode 45kV maximum, 80µA maximum
• Tube Voltage: 45 kV
• Weight (English): 17 lb.
• Weight (Metric): 7.7 kg
• Voltage: 45 kV
• System Electronics:
  • 400MHz ARM 11 CPU
  • 300MHz dedicated DSP
  • 80MHz ASICS DSP for signal processing
  • 4096 channel MCA
• Data Entry: Touch-screen keyboard, user-programmable pick lists
• Licensing: Varies by region. Contact your local distributor
• Dimensions (L × W × H): 15.6 × 8.1 × 10.4 in. (396 × 206 × 265 mm)
• Certifications/Compliance: CE, RoHS
• Unit Size: Each
