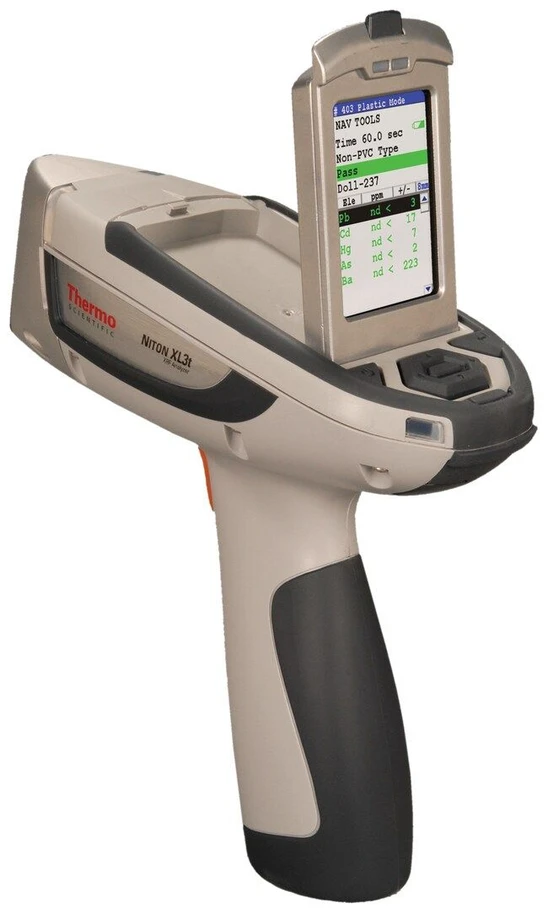

Thermo Scientific Niton XL3t XRF Analyzer

⚙️ Features

• High sensitivity and measurement accuracy.
• Lower detection limits for higher-Z elements, with additional elements Mg, Al, Si and P via helium purge.
• Standard analytical range: 25 elements from S to U.
• Optional CCD camera for visually identifying and recording images of samples.
• A user-selectable 3mm small spot to locate areas of interest on a sample.

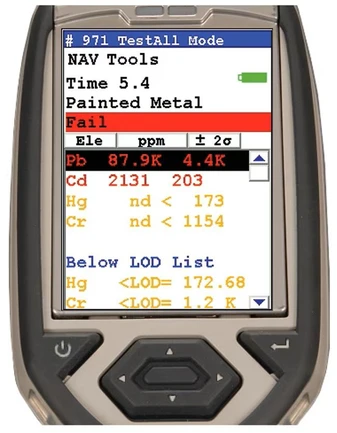

• Flip-up, color, touch-screen display.
• Ergonomic design.
• Easy-to-use software.
• 50 kV x-ray tube provides approximately twice the x-ray flux of a 40 kV x-ray tube.
• Hotfoot hot surface adaptor allows testing in petrochemical refineries up to 842°F (450°C).

🔗 Connectivity

• Integrated USB and Bluetooth™ communications provide direct data transfer to your PC or networked storage device.
• Standard Thermo Scientific™ Niton Data Transfer (NDT™) PC software allows you to:
  • Set operator permissions
  • Generate custom reports
  • Print certificates of analysis
  • Remotely monitor and control the instrument from your PC
• Optional accessories: Bluetooth barcode reader, Bluetooth printer, Bluetooth GPS

Thermo Scientific™ Niton™ XL3t XRF Analyzer

📏 Specifications

• Applications: Elemental Analysis
• Available Analytical Modes: Varies by Application
  • Alloy Modes: Metal Alloy, Electronics Alloy, Precious Metals
  • Bulk Modes: Mining, Soil
  • Plastic Modes: RoHS Plastics, Toy and Consumer Goods Plastics, TestAll Painted Products
  • Other Modes: Lead Paint, Thin Sample
• Data Memory: 32Mb internal system memory / 128Mb internal user storage
• Description: Niton XL3t XRF Analyzer
• Detector Type: High-performance Semiconductor
• Display Type: Adjustable angle, color, touch-screen display
• Item Description: XL3t Analyzer; Portable
• Height (English): 3.75 in.
• Height (Metric): 95.5 mm
• Length (English): 9.6 in.
• Length (Metric): 244 mm
• Width (English): 9.05 in.
• Width (Metric): 230 mm
• Optional Accessories:
  • Portable test stand, stationary test stand, tripod stand;
  • Extenda-Pole™ extension pole;
  • Welding Mask;
  • HotFoot™ hot surface adapter;
  • Soil testing guard;
  • Internal CCD sample imaging system;
  • Variable spot size aperture
• Power Consumption: 100 µA
• Security Features: Password-protected user security
• Standard Accessories:
  • Locking shielded carrying case, RFID reader, Shielded belt holster,
  • Two 4 (or optional 6) -cell lithium-ion battery packs,
  • Spare battery pack, 110/220 VAC battery charger/AC adaptor,
  • PC connection cables (USB and RS-232),
  • Niton Data Transfer (NDT™) PC software,
  • Safety lanyard, Check samples/standards
• Tube Type: Au anode 50kV maximum, 200µA maximum
• Tube Voltage: 50 kV
• Weight (English): 3 lb.
• Weight (Metric): 1.3 kg
• Voltage: 50 kV
• Dimensions (L × W × H): 9.6 × 9.05 × 3.75 in. (244 × 230 × 95.5 mm)
• Operating System: Ownership
• Certifications/Compliance: CE, RoHS
• Max. Power: 2W
• Unit Size: Each
