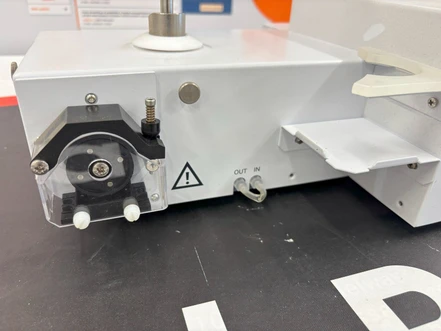

Agilent I-AS Autosampler base, G3160B (Tested)

The Agilent I-AS Clean Autosampler is a compact, high-precision autosampler designed specifically for Agilent ICP-MS systems. It automates ultra-trace sample introduction while minimizing contamination risks. With flexible tray options and a non-metal construction, it ensures reliable performance for semiconductor and other demanding ultra-trace applications. The G3160B base version provides RS232C + USB connectivity for seamless integration.

Key Features

• Designed for Agilent ICP-MS systems – compatible with 8900/8800 ICP-QQQ and 7900/7850/7800/7700 ICP-MS.
• Ultra-clean operation – non-metal arm and fluororesin probe reduce contamination risks.
• Efficient rinsing – continuously flowing rinse port under peristaltic pump control prevents carryover.
• Flexible tray options – accommodates sample volumes from <1 mL up to 100 mL with multiple tray configurations (A–G).
• Compact footprint – optimized placement close to the nebulizer minimizes tubing and dead volume.
• Durable build – anti-corrosion and HF-resistant materials with rugged protective cover.
• Integrated software support – full control through ICP-MS MassHunter, with optional Intelligent Sequencing for automated QA/QC.

Technical Specifications

• Part Number: G3160B
• Communication: RS232C + USB
• Dimensions: 290 × 360 × 220 mm (280 mm incl. probe)
• Weight: 5 kg (11 lbs)
• Sample Position Capacity: Single position up to Ø55 mm, ≤126 mm height
• Tray Options:
  • 89 × 6 mL vials (Type A)
  • 53 × 18 mL vials (Type B)
  • 18 × 50 mL vials (Type C)
  • 79 × 1.5 mL + 10 × 18 mL vials (Type D)
  • 79 × 6 mL + 10 × 18 mL vials (Type E)
  • 15 vials up to Ø48 × 55 mm (Type F)
  • 28 × 20 mL vials (Type G)
• Power Requirements: 100–120 VAC, 50/60 Hz, 1 A or 200–240 VAC, 50/60 Hz, 0.5 A
• Supported Instruments: Agilent 8900/8800 ICP-QQQ, 7900/7850/7800/7700 ICP-MS
