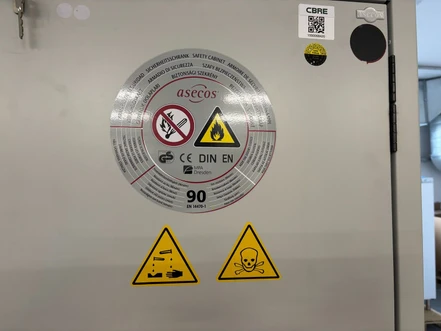

Asecos Safety Storage Cabinet Q-CLASSIC-90 (Refurbished)

Fire-resistant cabinet for safe storage of flammable liquids, offering 90-minute fire protection as required by EN 14470-1. Its robust steel construction, triple-hinged door, corrosion-protected safety components and door arrest system ensure safe and ergonomic operation. Ideal for laboratories requiring certified, compliant hazardous storage in a compact footprint.

Key Features

• 90-minute fire resistance (EN 14470-1 Type 90)
• Triple-hinged door for maximum durability
• Door open arrest system (WDASR)
• Cylinder lock with red/green status indicator
• Integrated transport base for easy relocation
• Alignment aids for uneven floors
• Ventilation ducts (DN 75) for connection to an exhaust system
• Scratch- and impact-resistant surfaces
• Safety components mounted outside storage area to prevent corrosion
• Double certified (EN 14470-1 + FM 6050)

Certifications

• EN 14470-1 Type 90
• DIN EN 16121 / 16122
• GS certified
• CE compliant
• FM 6050 approved
• UL / ULC 1275 listed

Technical Specifications

• External dimensions (W × D × H): 23.58" × 24.21" × 76.89"
• Internal dimensions (W × D × H): 17.72" × 20.55" × 64.84"
• Depth with open door: 1128 mm
• Transport base entry width: 526 mm
• Transport base entry height: 90 mm
• Net weight: 289.5 kg
• Door opening angle: 89.4°
• Vent connection: DN 75
• Minimum exhaust air (10× air change): 4 m³/h
• Max shelf load: 75 kg (evenly distributed)
• Bottom collecting sump capacity: 22 L
• Number of storage levels: 3
• UNSPSC: 24112402
